Project: Symphony User Interface Design

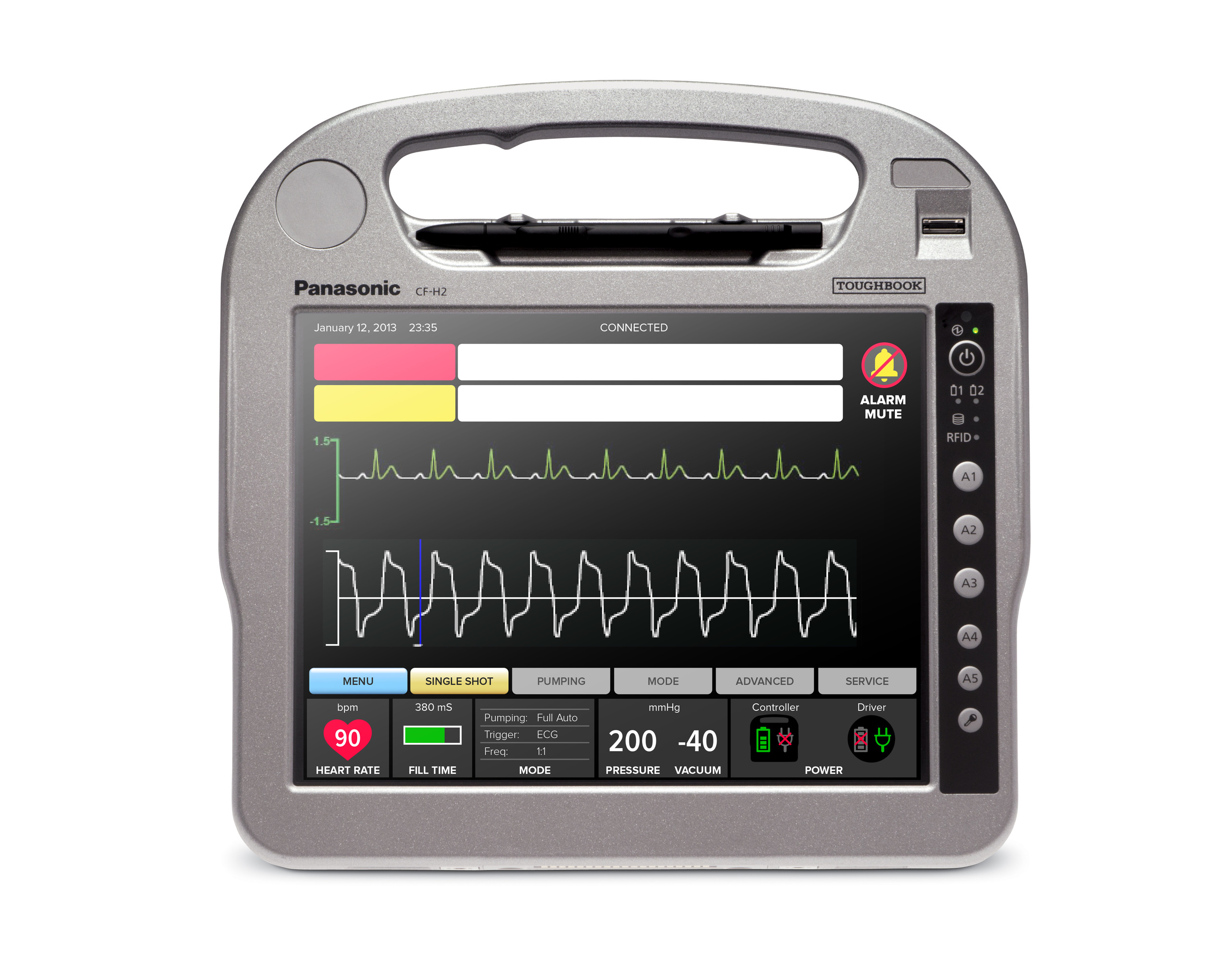

The Symphony device is a minimally invasive implantable heart pump designed to slow the progression of heart failure and help the heart heal. Because Symphony is primarily used in critical situations, the goal was to develop an interface that displayed all options and variables at a glance, allowing for quick adjustments as necessary.
All functionality was reduced to two buttons and four tabs, allowing quick access to each of the consoles functions.
Bright green and red give instant feedback as to on and off states. This gives the clinician the ability to quickly tap and move on.
Sliders control fine settings.
